Drum Pulper For Pulping Process In Paper Mill

Drum Pulper For Pulping Process In Paper Mill

short description:

Drum pulper is a high-efficiency waste paper shredding equipment, which is mainly composed of feed hopper, rotating drum, screen drum, transmission mechanism, base and platform, water spray pipe and so on. The drum pulper has a pulping area and a screening area, which can complete the two processes of pulping and screening at one time. The waste paper is sent to high consistency pulping area by the conveyor,at the concentration of 14% ~ 22%, it is repeatedly picked up and dropped to a certain height by the scraper on the inner wall with the rotation of the drum, and collides with the hard inner wall surface of the drum. Due to the mild and effective shear force and the enhancement of friction between fibers, the waste paper is separated into fibers.


Product Detail

Product Tags

Drum Diameter (mm)

2500

2750

3000

3250

3500

Capacity(T/D)

70-120

140-200

200-300

240-400

400-600

Pulp consistency(%)

14-18

Power(KW)

132-160

160-200

280-315

315-400

560-630

75I49tcV4s0

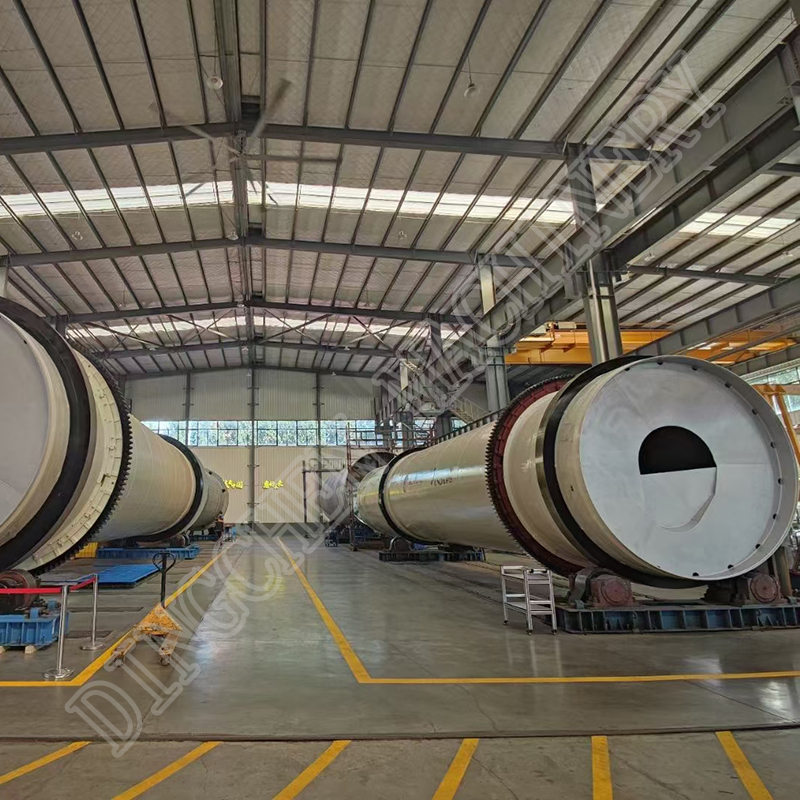

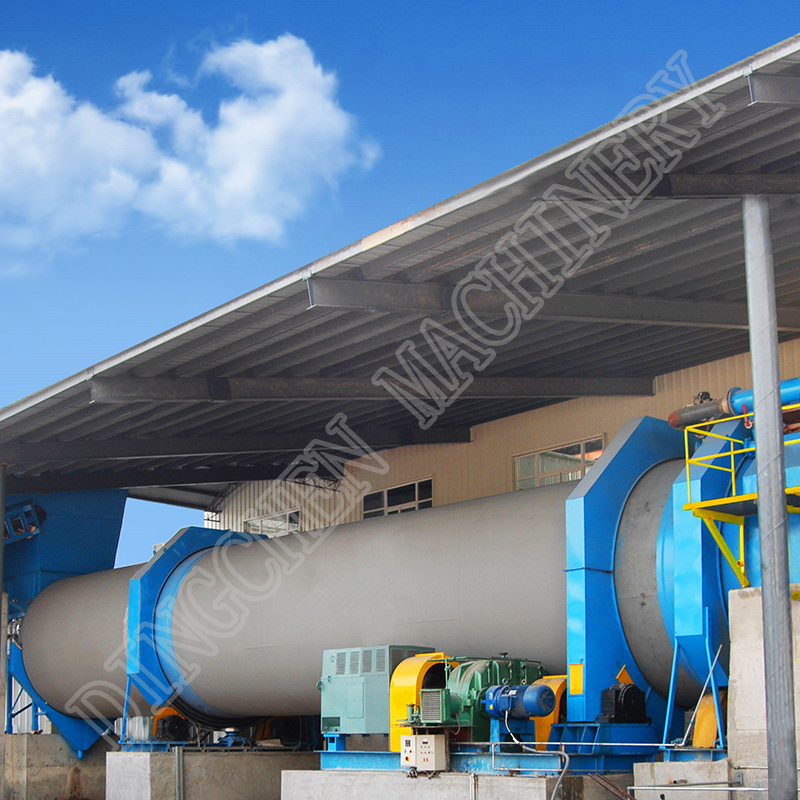

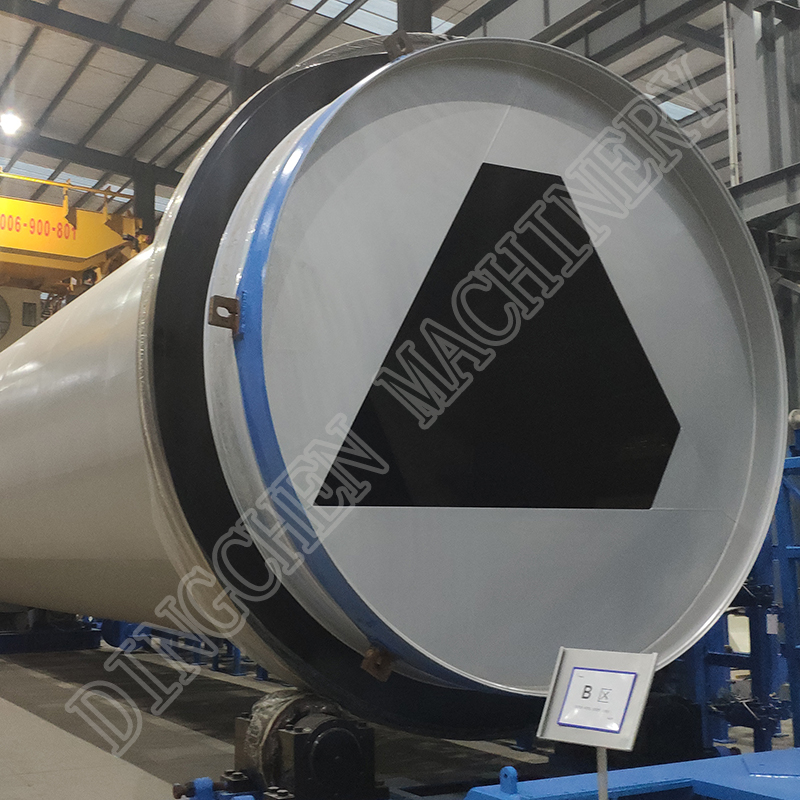

Product Pictures
